FM Class 1-135
Typical Detail

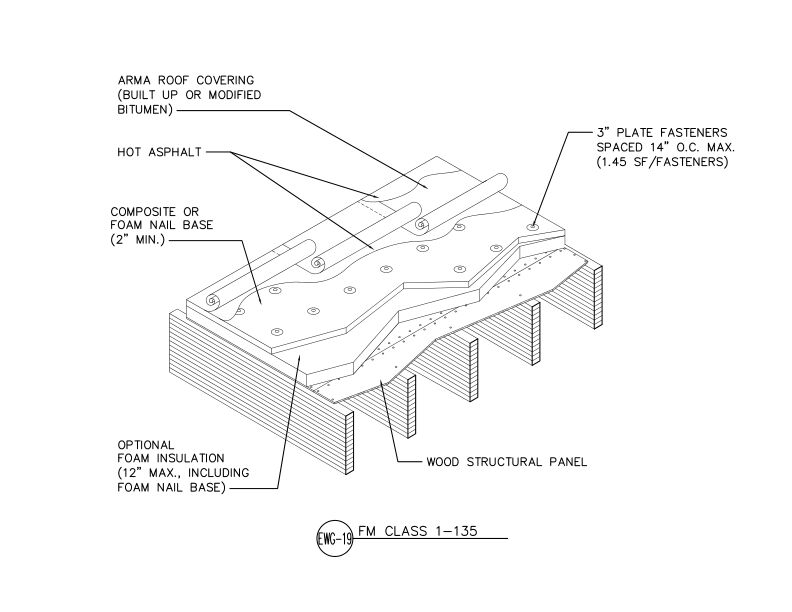

This detail shows an FM Class 1-135 rated flat roof assembly using wood structural panels with composite or foam nail base, optional foam insulation, and built-up or modified bitumen roofing secured with plate fasteners in 2D CAD format. Developed by APA – The Engineered Wood Association, this detail is drawn from APA publication Engineered Wood Construction Guide, Form E30 and reflects decades of engineered wood research, testing and field-proven best practices.
This 2D detail is designed for architects, engineers, contractors and building professionals and provides clear, code-compliant guidance.
Available in multiple formats including DWG (AutoCAD), RVT (Revit), and PDF, this detail helps building professionals streamline the design and construction process while ensuring structural integrity and proper installation of engineered wood products.
Published by APA — The Engineered Wood Association.
