Garage Door Header to End Wall, Steel Tie Plate
Typical Detail

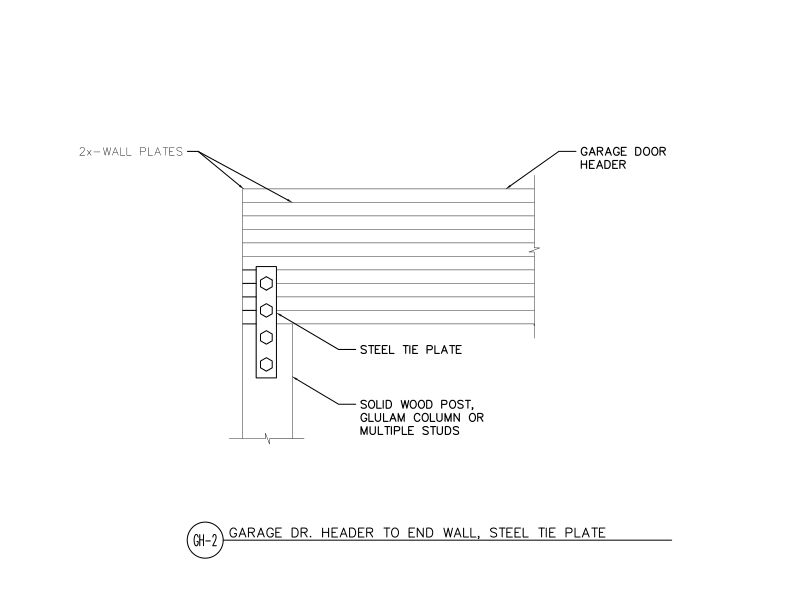

This detail shows a connection of a garage door header and an end wall using a steel plate fastened to a solid wood post, glulam column or studs in 2D CAD format. Developed by APA – The Engineered Wood Association, this detail is drawn from APA publication Glulam Garage Door Headers Offer Design Options, Form C410 and reflects decades of engineered wood research, testing and field-proven best practices.
This 2D detail is designed for architects, engineers, contractors and building professionals and provides clear, code-compliant guidance.
Available in multiple formats including DWG (AutoCAD), RVT (Revit), and PDF, this detail helps building professionals streamline the design and construction process while ensuring structural integrity and proper installation of engineered wood products.
Published by APA — The Engineered Wood Association.
