Lumber Cantilever Detail for Balconies
Typical Detail

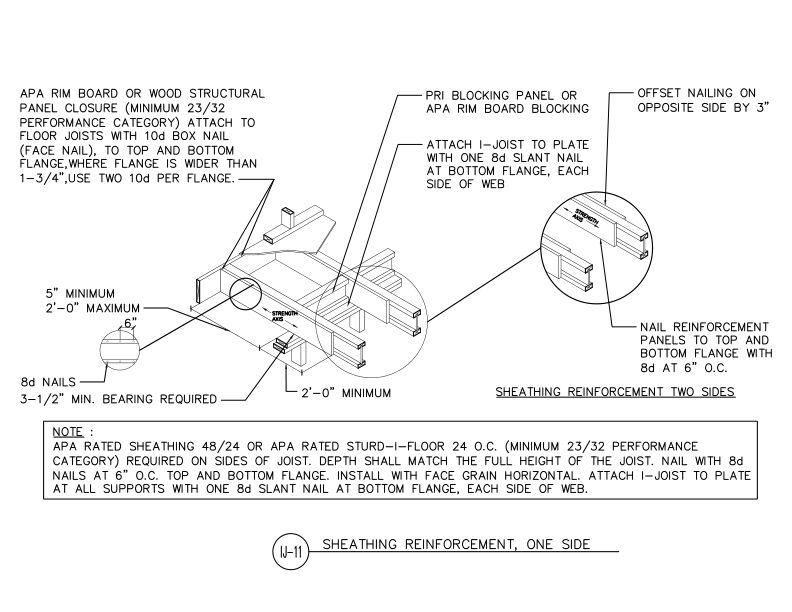

This detail outlines a construction method for balconies using cantilevered lumber extensions attached to I-joists at their back span in 2D CAD format. Developed by APA – The Engineered Wood Association, this detail is drawn from APA publication APA Performance Rated I-Joists, Form Z725 and reflects decades of engineered wood research, testing and field-proven best practices.
This 2D detail is designed for architects, engineers, contractors and building professionals and provides clear, code-compliant guidance.
Available in multiple formats including DWG (AutoCAD), RVT (Revit), and PDF, this detail helps building professionals streamline the design and construction process while ensuring structural integrity and proper installation of engineered wood products.
Published by APA — The Engineered Wood Association.
