Nailer Anchored with Power Driven Fasteners
Typical Detail

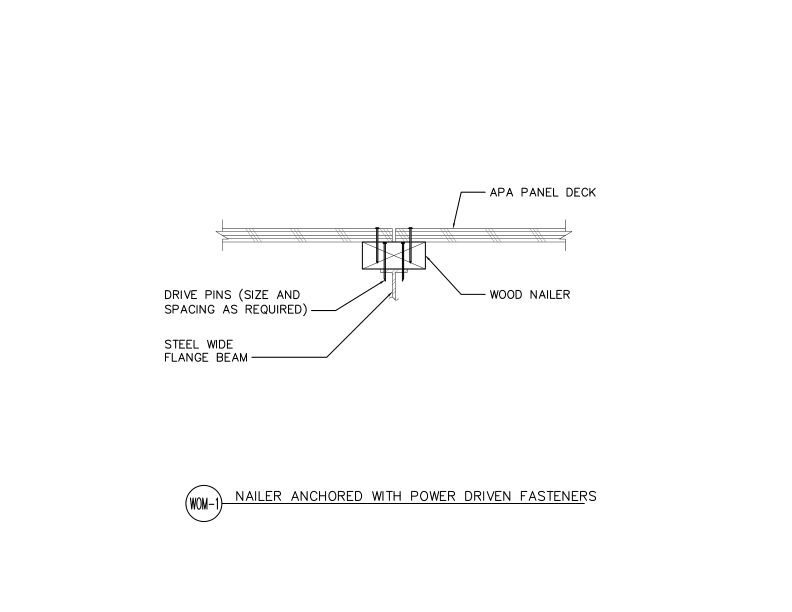

This detail shows wood nailer attachment to steel wide flange beam using drive pins to support APA panel deck, secured with power driven fasteners in 2D CAD format. Developed by APA – The Engineered Wood Association, this detail is drawn from APA publication Wood Structural Panels Over Metal Framing, Form T625 and reflects decades of engineered wood research, testing and field-proven best practices.
This 2D detail is designed for architects, engineers, contractors and building professionals and provides clear, code-compliant guidance.
Available in multiple formats including DWG (AutoCAD), RVT (Revit), and PDF, this detail helps building professionals streamline the design and construction process while ensuring structural integrity and proper installation of engineered wood products.
Published by APA — The Engineered Wood Association.
