Sheathing Reinforcement for Cantilevered I-Joist for Vertical Building Offset Two Sides
Typical Detail

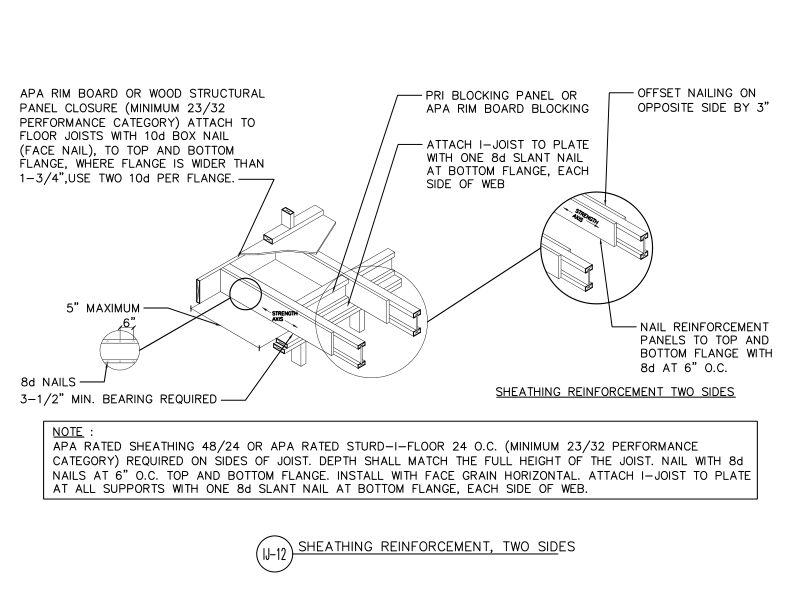

This detail shows installation of a sheathing reinforcement on cantilevered I-joists at a vertical building offset and specifies reinforcement for two sides of the I-joist in 2D CAD format. Developed by APA – The Engineered Wood Association, this detail is drawn from APA publication APA Performance Rated I-Joists, Form Z725 and reflects decades of engineered wood research, testing and field-proven best practices.
This 2D detail is designed for architects, engineers, contractors and building professionals and provides clear, code-compliant guidance.
Available in multiple formats including DWG (AutoCAD), RVT (Revit), and PDF, this detail helps building professionals streamline the design and construction process while ensuring structural integrity and proper installation of engineered wood products.
Published by APA — The Engineered Wood Association.
