Diaphragm Nail Penetration and 1-5/16-Inch Thick I-Joist Flanges
Technical Topic
Nail penetration depth is a key factor in the lateral load capacity of wood structural panel connections in shear walls and diaphragms, and questions have arisen about how this requirement applies to wood I-joists with thinner flanges. This technical publication addresses minimum nail penetration requirements for 1-5/16-inch thick I-joist flanges, providing code-referenced findings backed by NDS-based engineering analysis.
This publication is designed for: engineers, building code officials, I-joist manufacturers, designers
The publication extends APA's original 1998 dowel bearing strength analysis (APA Report T98-22) — the basis for nail penetration tables being introduced in the 2000 IBC and SDPWS — to answer whether 1-5/16-inch I-joist flanges provide adequate nail penetration for full connection capacity. Using 2015 NDS yield equations, APA calculated minimum penetration depths for 8d and 10d common nails across a range of panel grades and specific gravity combinations and compares these results against the 1-5/16-inch flange thickness. It also addresses the separate diaphragm testing requirement that applies to I-joists with thinner flanges.
Key sections include:
Background on nail penetration requirements in shear walls and diaphragms
NDS yield equation methodology used to calculate minimum penetration

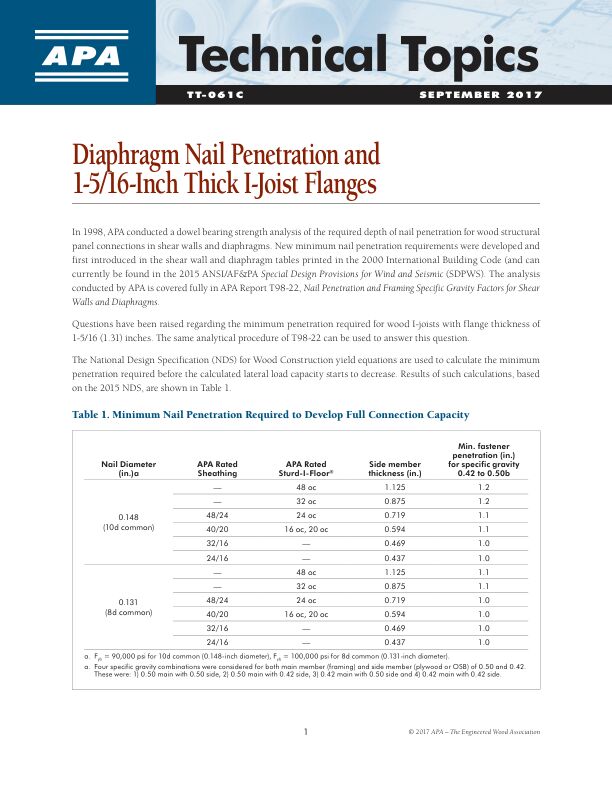

Table 1: minimum fastener penetration by nail diameter, panel grade, and side member thickness
Findings confirming 1-5/16-inch flanges develop full nail connection capacity
ICC-ES AC14 full-scale diaphragm testing requirements for I-joists with thinner flanges
