Method CS-PF - Continuously Sheathed Portal Frame Panel Construction
Typical Detail

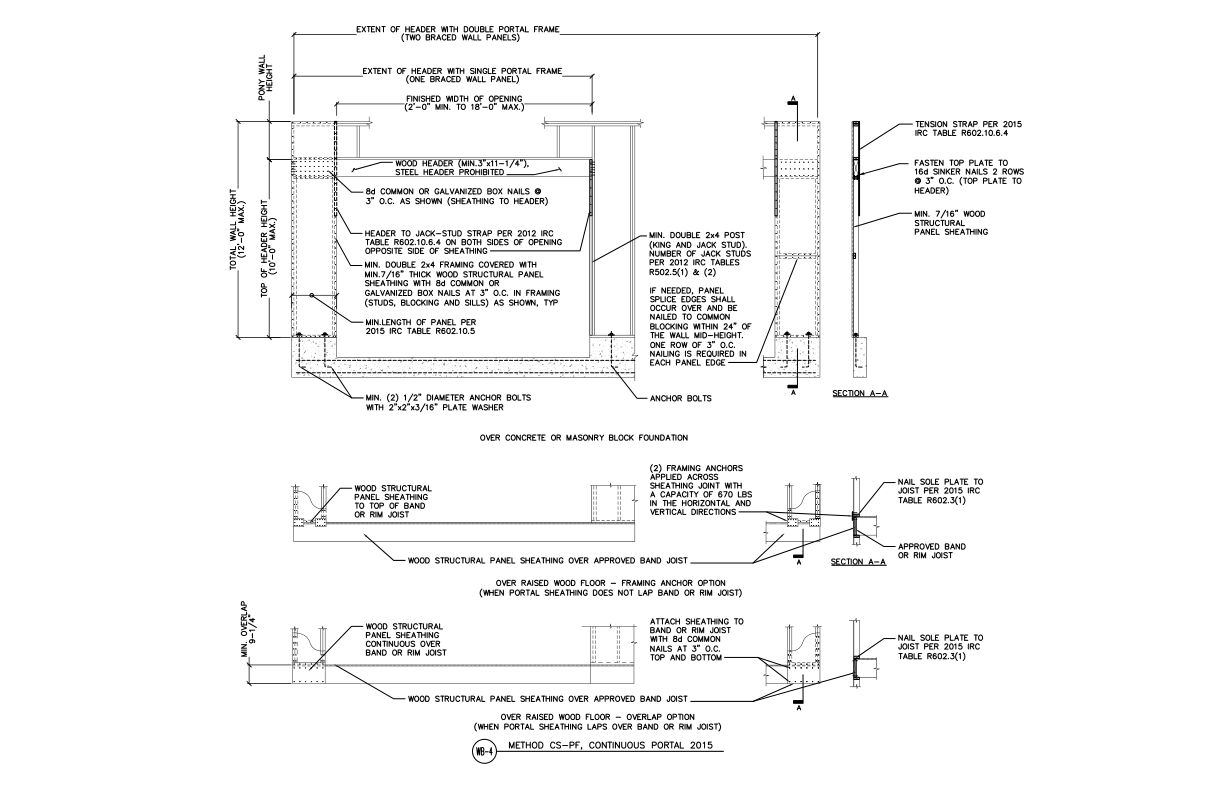

This detail shows the wall bracing method continuously sheathed portal frame and its requirements including anchorage, minimum member sizes, and sheathing attachment in 2D CAD format. Developed by APA – The Engineered Wood Association, this detail is drawn from APA publication A Guide to the 2015 IRC® Wood Wall Bracing Provisions and reflects decades of engineered wood research, testing and field-proven best practices.
This 2D detail is designed for architects, engineers, contractors and building professionals and provides clear, code-compliant guidance.
Available in multiple formats including DWG (AutoCAD), RVT (Revit), and PDF, this detail helps building professionals streamline the design and construction process while ensuring structural integrity and proper installation of engineered wood products.
Published by APA — The Engineered Wood Association.
